PORTFOLIO 1- a House on a Waterway

Requirements

The project is on a secluded one-acre residential lot sited adjacent to a small body of water. The approximate center of the heavily-treed site had a natural clearing at sufficient elevation above the flood plain to locate the residence. A gentle but significant slope cut diagonally across the western to eastern contours.

Of particular interest in the program was an implicit need for flexibility in use and occupation, as the owners, (a married couple), wished to accommodate their grown children, as well as occasional guests, whose tenancy would vary. This specific requirement also allowed for a more generic consideration of the general housing issue of space-use over time in the public areas, as well as an organization which would clearly separate private areas in a classic 'parent/child' zoning.

The owners had a collection of contemporary works of art, as well as nineteenth century glass and early twentieth century photography. They specifically wanted an aesthetic which was "modern", by which they meant minimalist, abstract, and a container for their art and contemporary furniture.They also wanted a sense of privacy on the approach side, but a clear orientation to views and outdoor living on the water view side of the house. There were many specific interior requirements, particularly for storage, as well as features such as a greenhouse designated to be designed for use as aninterior space.

Solution

The complex program requirements were organized as a set of simple oppositions. The basic parti is a classic "binuclear" arrangement into children/service wing and master suite/living wing, connected by a cross circulation as a gallery for part of the owner's art collection. The former wing was rendered as a series of conventional ceiling height spaces, as it contained service elements and occasional occupancy. The latter wing was given more generous spatial dimension, both in planning and cross-section. The binuclear arrangement was also articulated as a "split-level", facilitating the development of the gallery as a vertical connecting "slot".

The essential Z-shape of the building was made to create a contrast between the formality of the entry court, in scale with automobile arrival on the approach side of the house, to the informality and scaled-down irregular massing defining the exterior spaces oriented to the waterfront view.

Exterior surface treatment, particularly the approach elevation, exhibits a restrained classicizing treatment, while the private activity side is developed as a diverse range of interior/exterior spatial relationships. The gridding of space, used as an organizing principle, interlocks both sections of the house, derives the regularity of the building mass, and relates the total surface treatment and development of its apertures to the interior spaces. The gallery continues the roofline of the primary wing as a clerestory of the two wings in a complex series of socializing spaces which elaborate the overlapping relationships of the two parts of the plan. Image reflects the client's tastes in an austere aesthetic wherein richness was seen to come from precision of detail, simple lines and proportions, and quality of materials and finish.

I chose to evoke both the volumetric massing seen in the American versions of the International Style of the 1930s, as well as its classicizing tendencies, American Art Deco and trends in recent 'Rationalist' architecture toward purity of form, symmetry and primary formal elements. Exterior color evokes these tendencies, primarily the recollection of Art Deco. On a lyrical level, it alludes to the neighbor (a prominent local Heart Surgeon who always wore his 'scubs'), natural imagery of the waterway by suggesting a "displacement line" in a stripe around the building (jokingly, the 'Hundred Year Flood line'). The division of color into bands also lends a measure of scale to the block and, by suggesting a kind of rustication, establishes a base for the building (suggested to client that the Olive Gray would work with moss growing, due to the humid site). Color was chosen to integrate to the site, and complement the quality of natural light found in the region and climates of coastal areas.

'CLICK' on images for Caption and to review in Sequence.

Site-Plan
Site-Plan

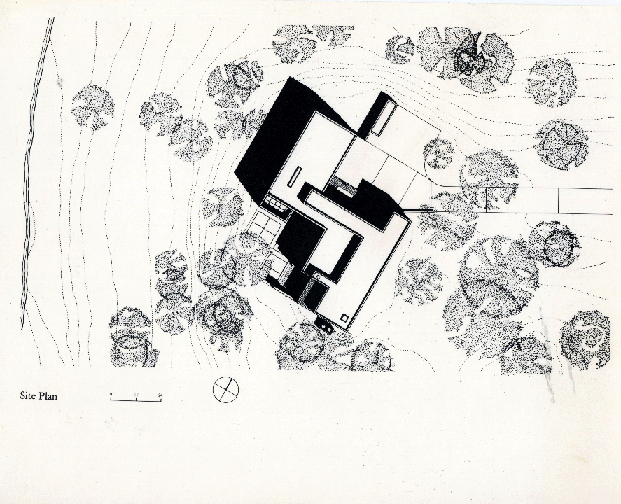

Orientation respects: - Solar Path - site contours - view

press to zoom

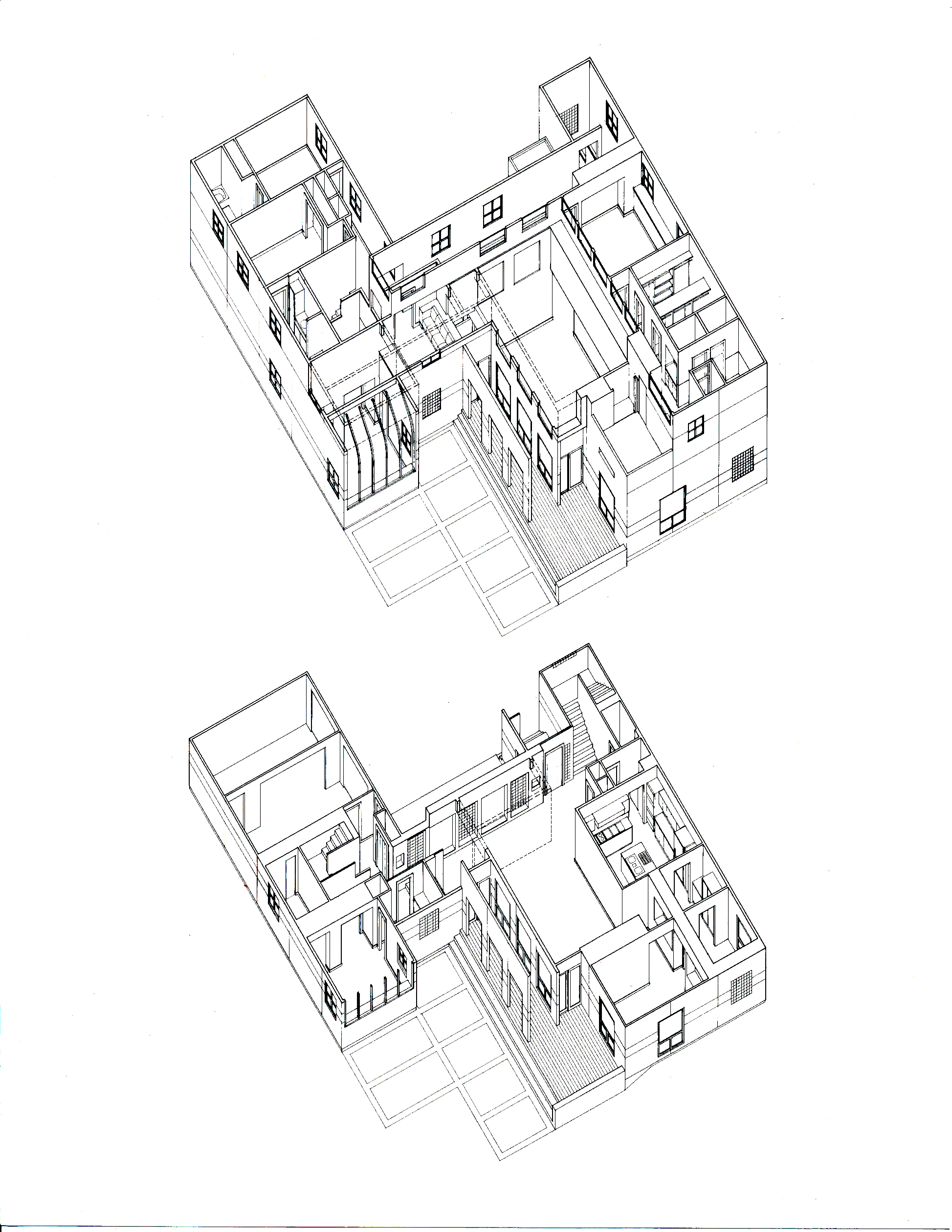

Axonometrics - public areas
Axonometrics - public areas

UPPER: exterior massing of approach/Entry Court LOWER: Master Suite L, tall spaces of Living Room & Gallery in Center, "extra"/occasional use bedrooms R

press to zoom

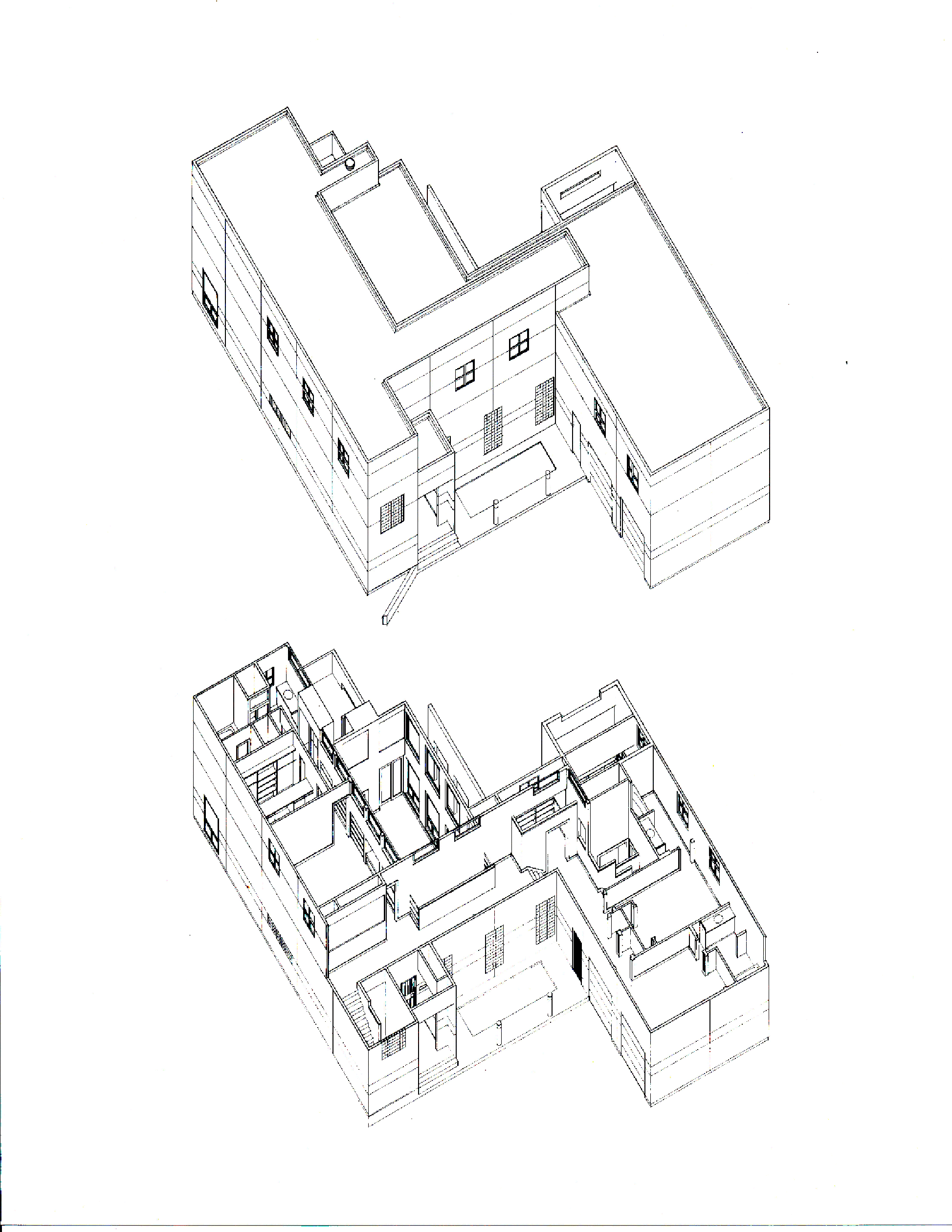

Axonxonometrics - private
Axonxonometrics - private

UPPER: "extra" bedrooms and Sun Room tall volume R, Master Suite + its outdoor terrace LOWER: stairs linking both sides L & R, tall volume of Living Room

press to zoom

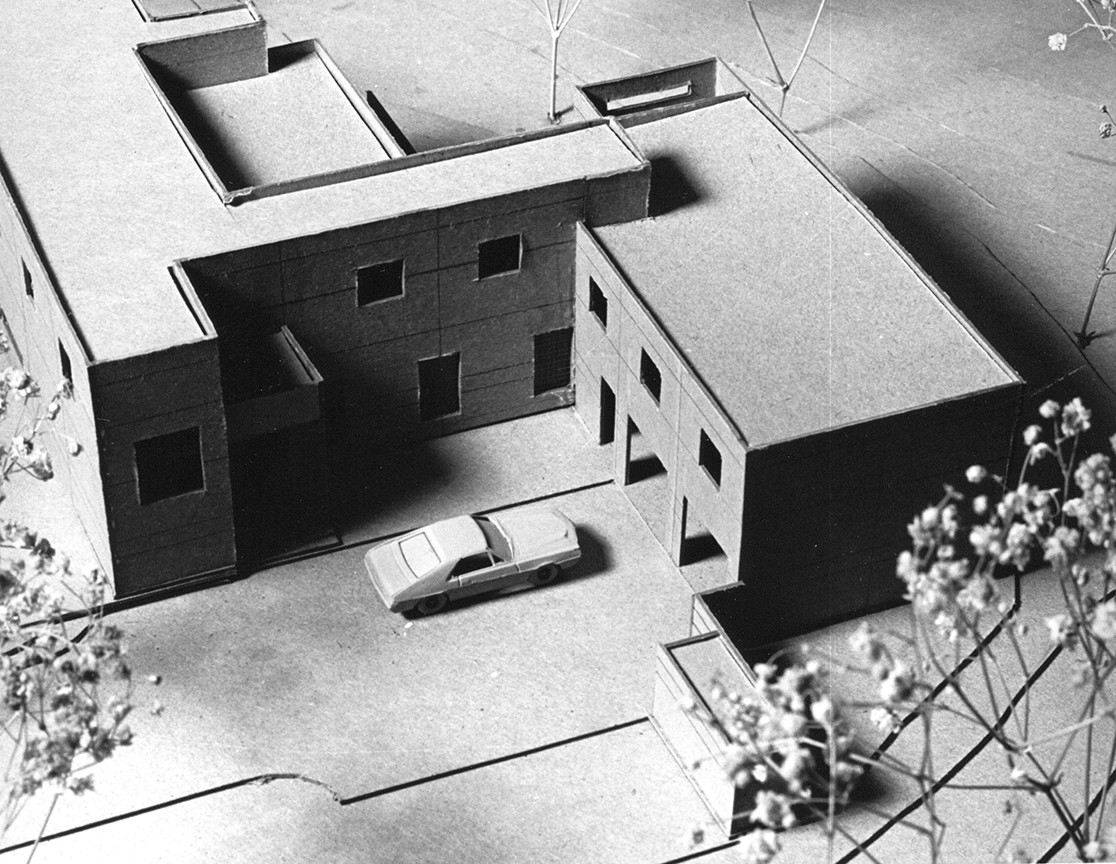

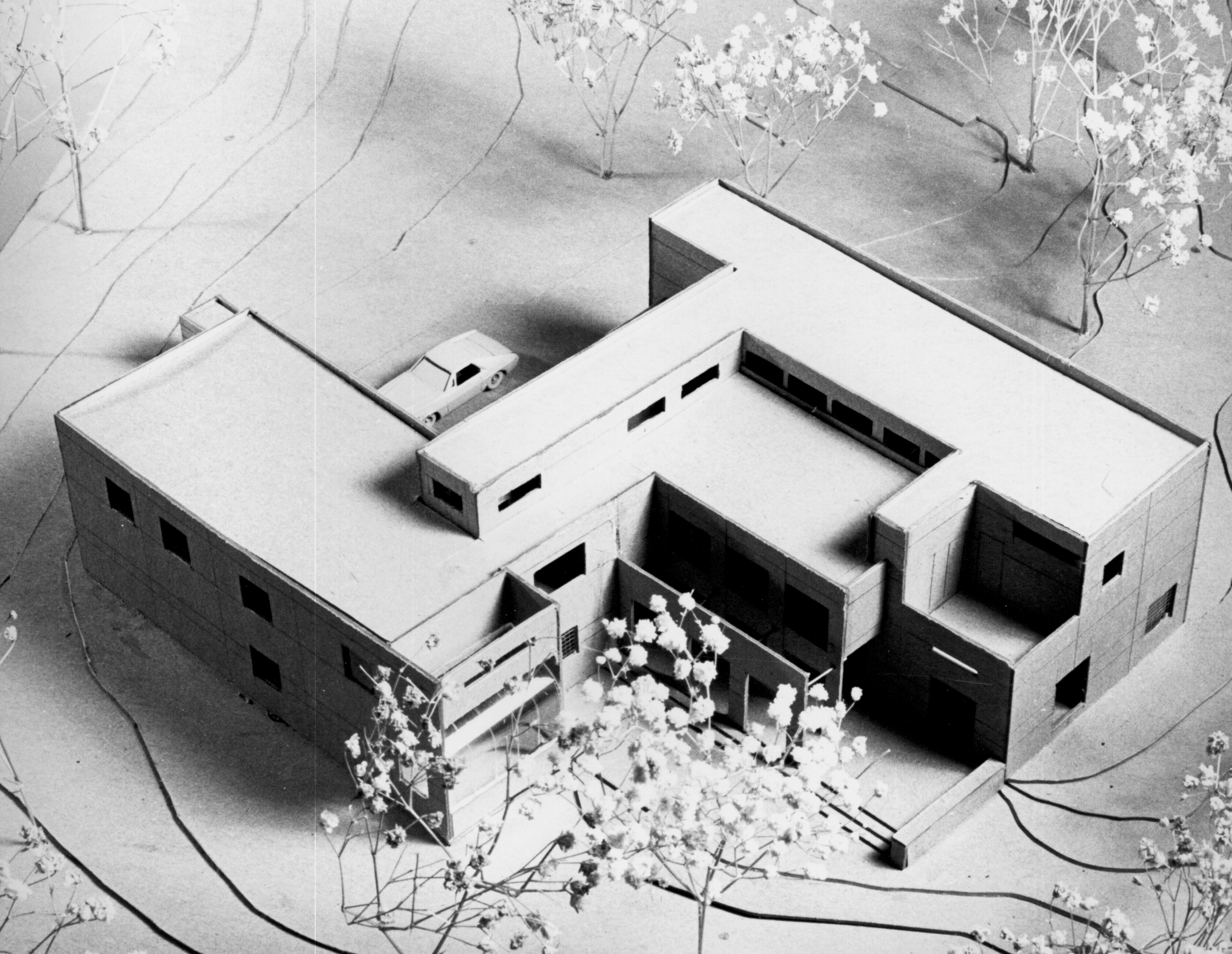

MODEL  - from NE
MODEL - from NE

Clients best understand Design by a Physical Model, in this case the Privacy of the Entry Court.

press to zoom
MODEL- rear massing
MODEL- rear massing

The concept of interlocking 'blocks' and more 'domestic-scaled' massing became clear by seeing the contrast of models.

press to zoom

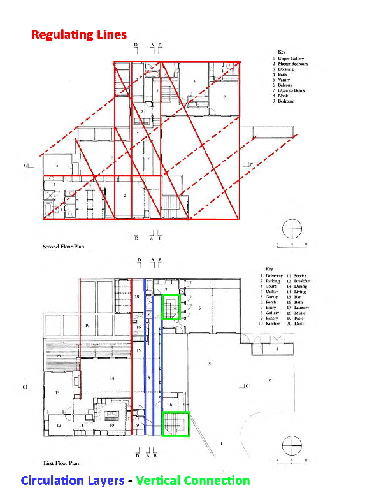

Plans -ANALYSIS
Plans -ANALYSIS

UPPER: Second Floor illustrating Regulating Lines LOWER: First Floor illustrating Spatial 'Layers'

press to zoom
Elevations-Sections-annotated
Elevations-Sections-annotated

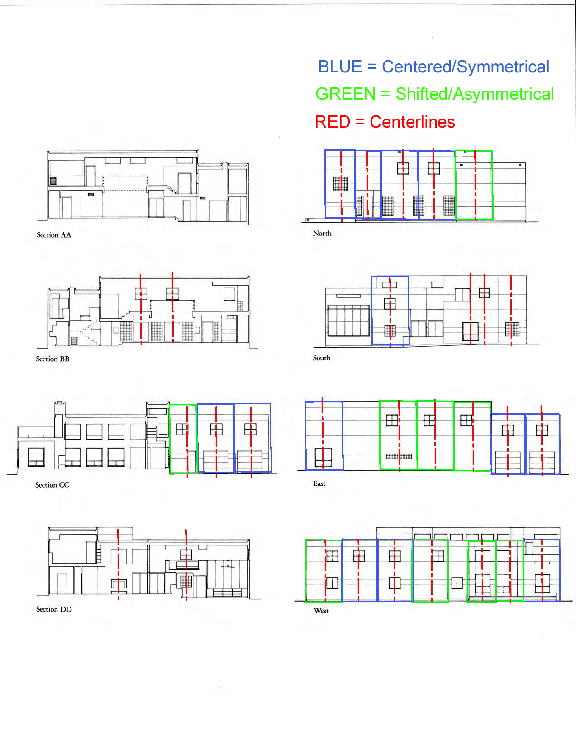

Symmetry and Shifted Symmetry illustrated

press to zoom
Exterior Entry Approach
Exterior Entry Approach

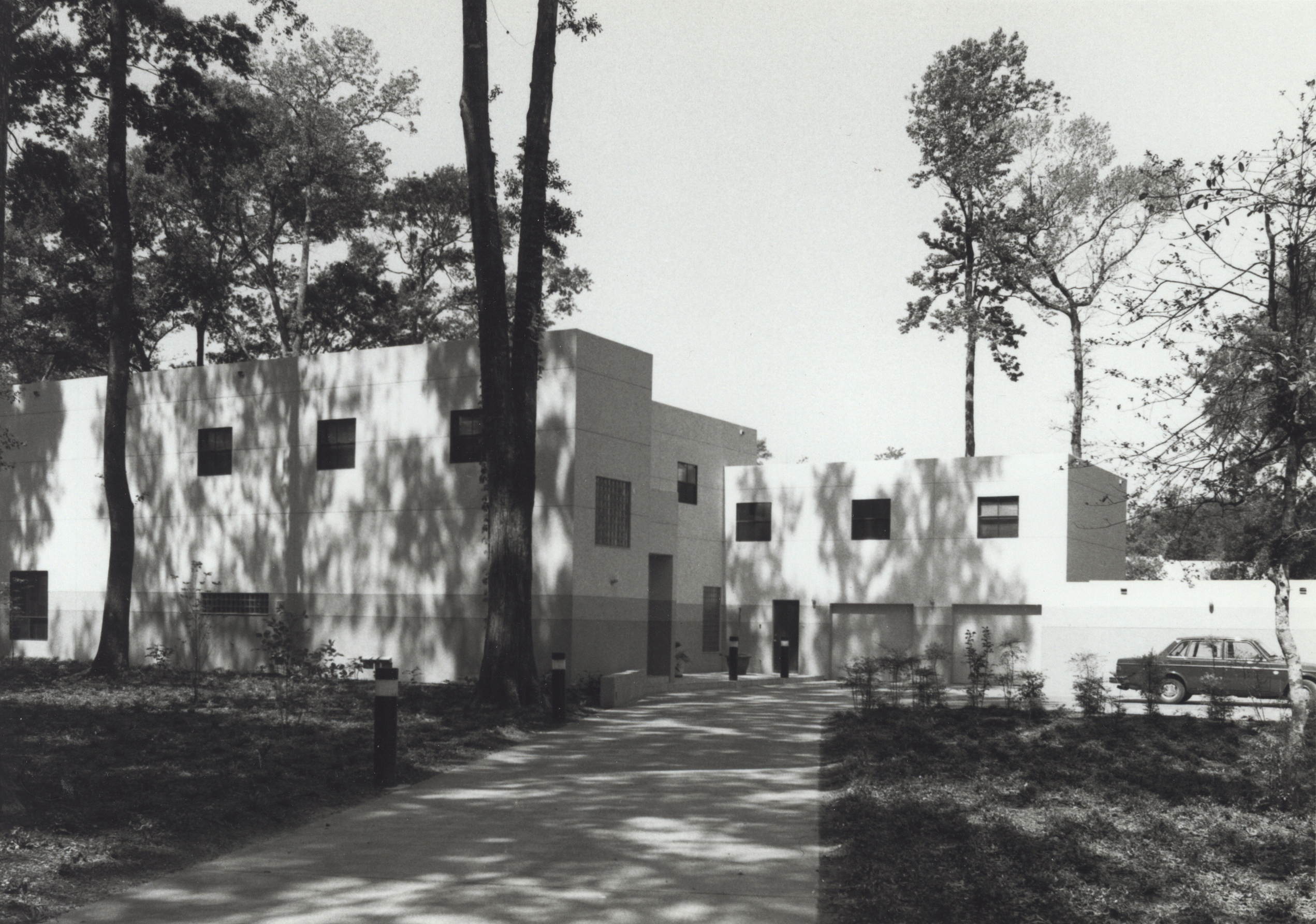

View from street approach, NE

press to zoom
Entry Approach 2
Entry Approach 2

A bright sunny day; not every day in Louisiana!

press to zoom

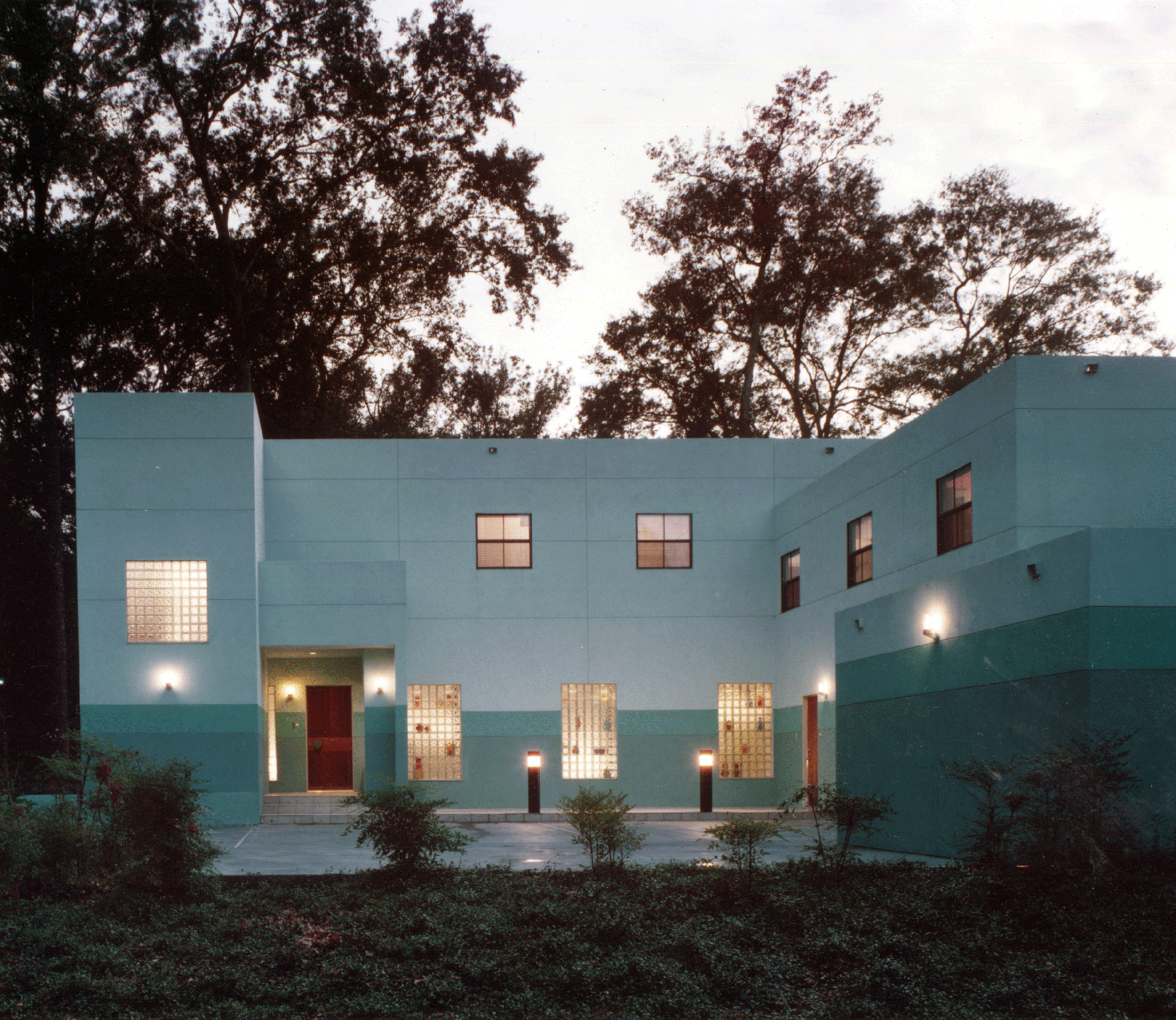

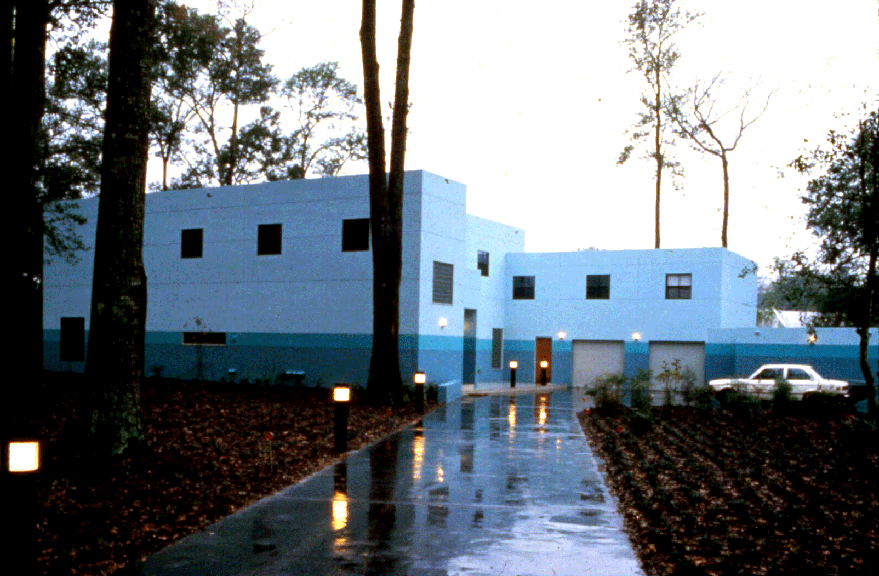

Exterior - Entry night
Exterior - Entry night

Night view of Entry Court, illustrating both 'monolithic' privacy expression, owner's art glass seen through glass block panels, and contrasting patterns of 2 / 3 apertures, within a symmetrical facade

press to zoom

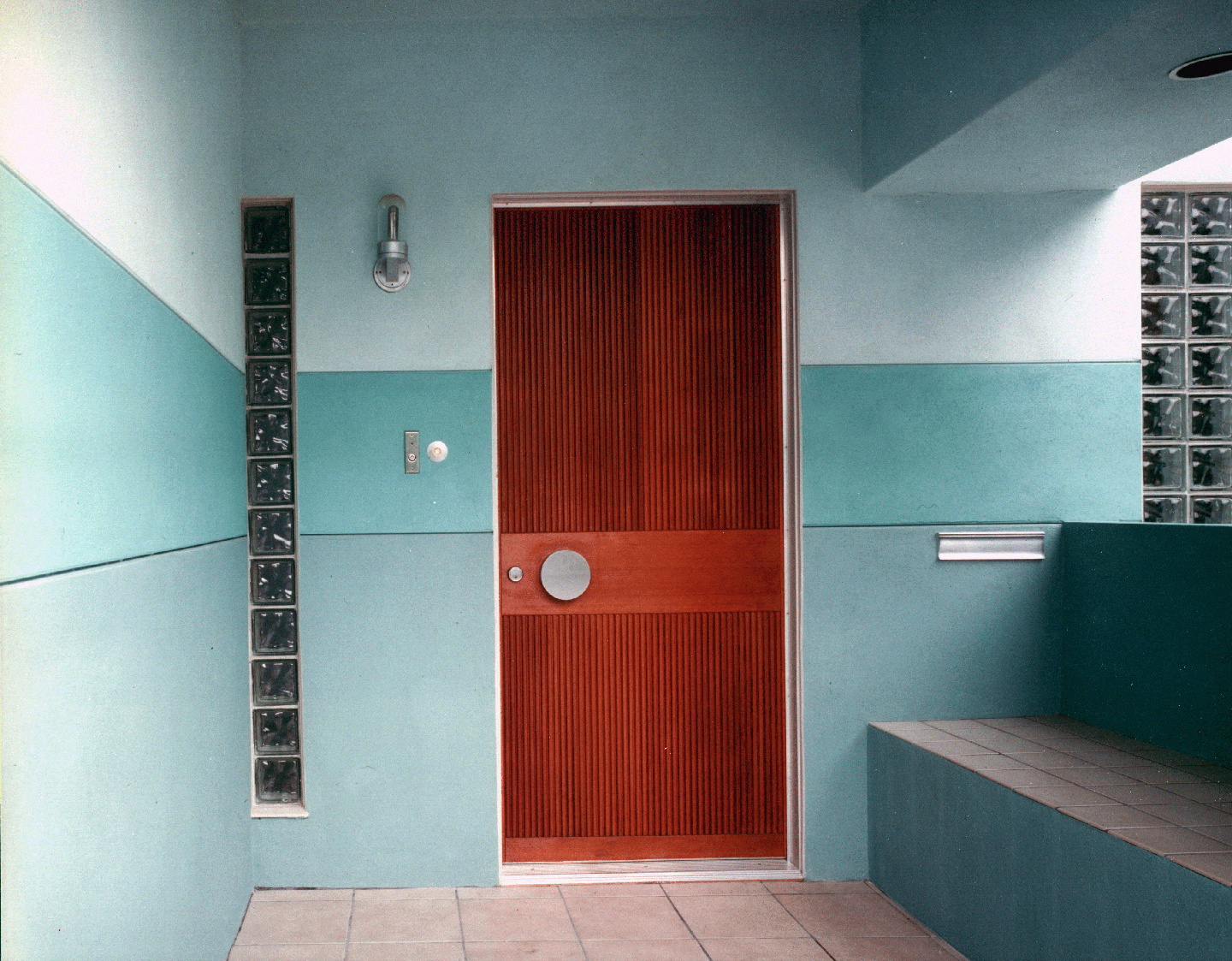

Exterior - Entry Porch
Exterior - Entry Porch

Porch as 'social space', providing bench and protected, covered exterior. Teak door designed to integrate with 'banding' on Elevations.

press to zoom

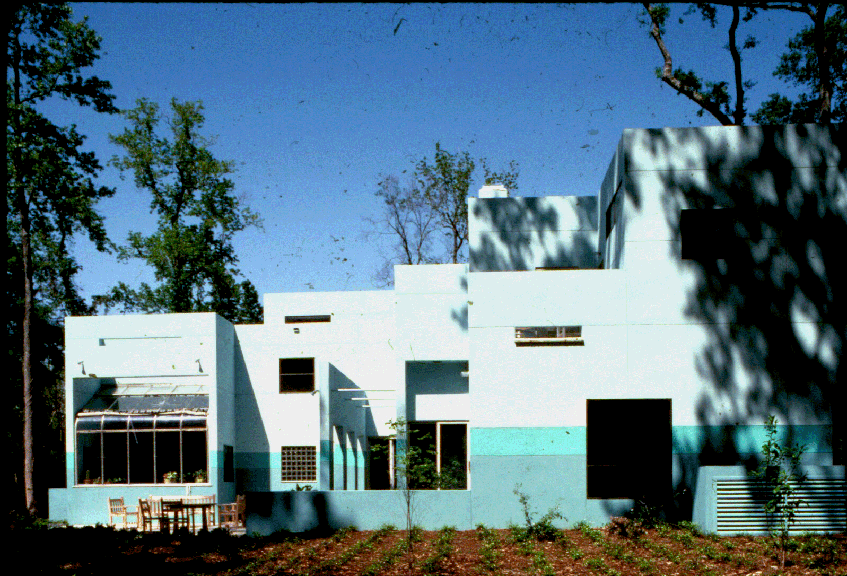

Exterior - view S
Exterior - view S

Rear massing contrasts to that of Entry Court: articulation represents activity units, and orientation captures a full day of sunlight.

press to zoom
Exterior - "Flying Buttress"
Exterior - "Flying Buttress"

The Living Room wall (R) has large apertures cut into the wall, but the additional freestanding exterior wall plane both frames views, provides shade and structurally acts as a brace.

press to zoom

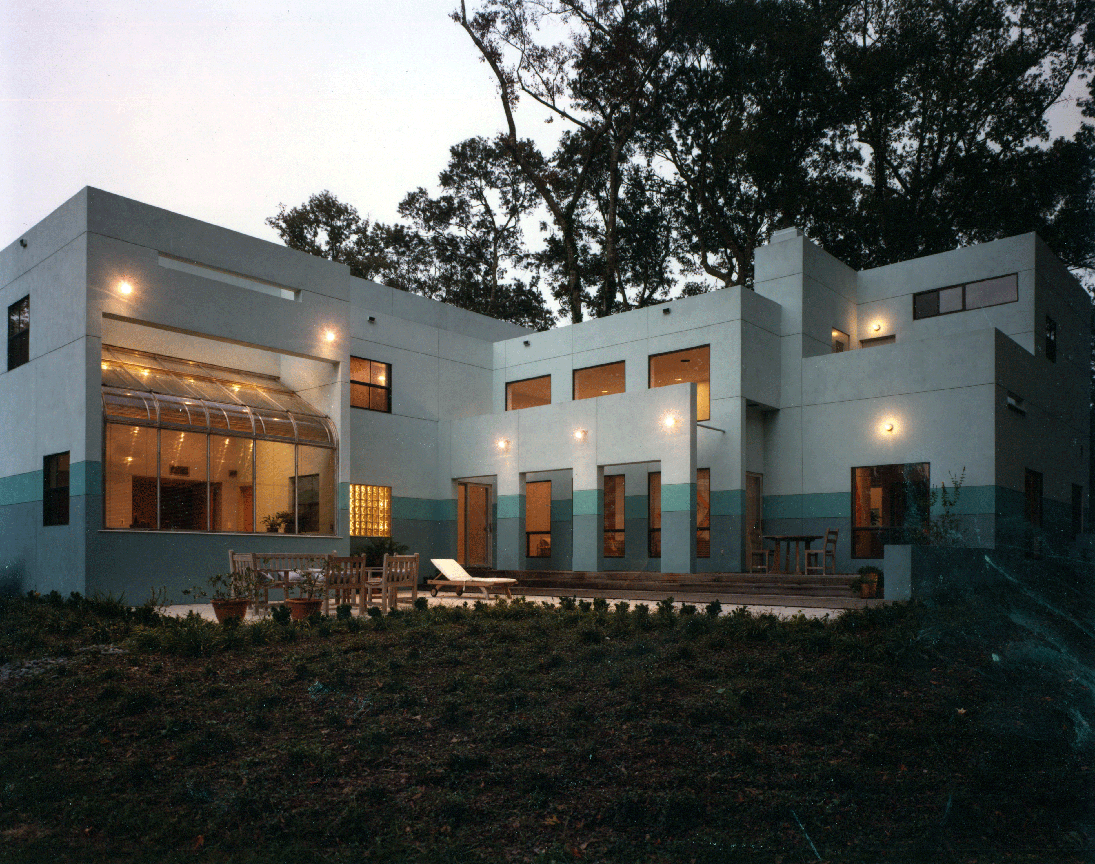

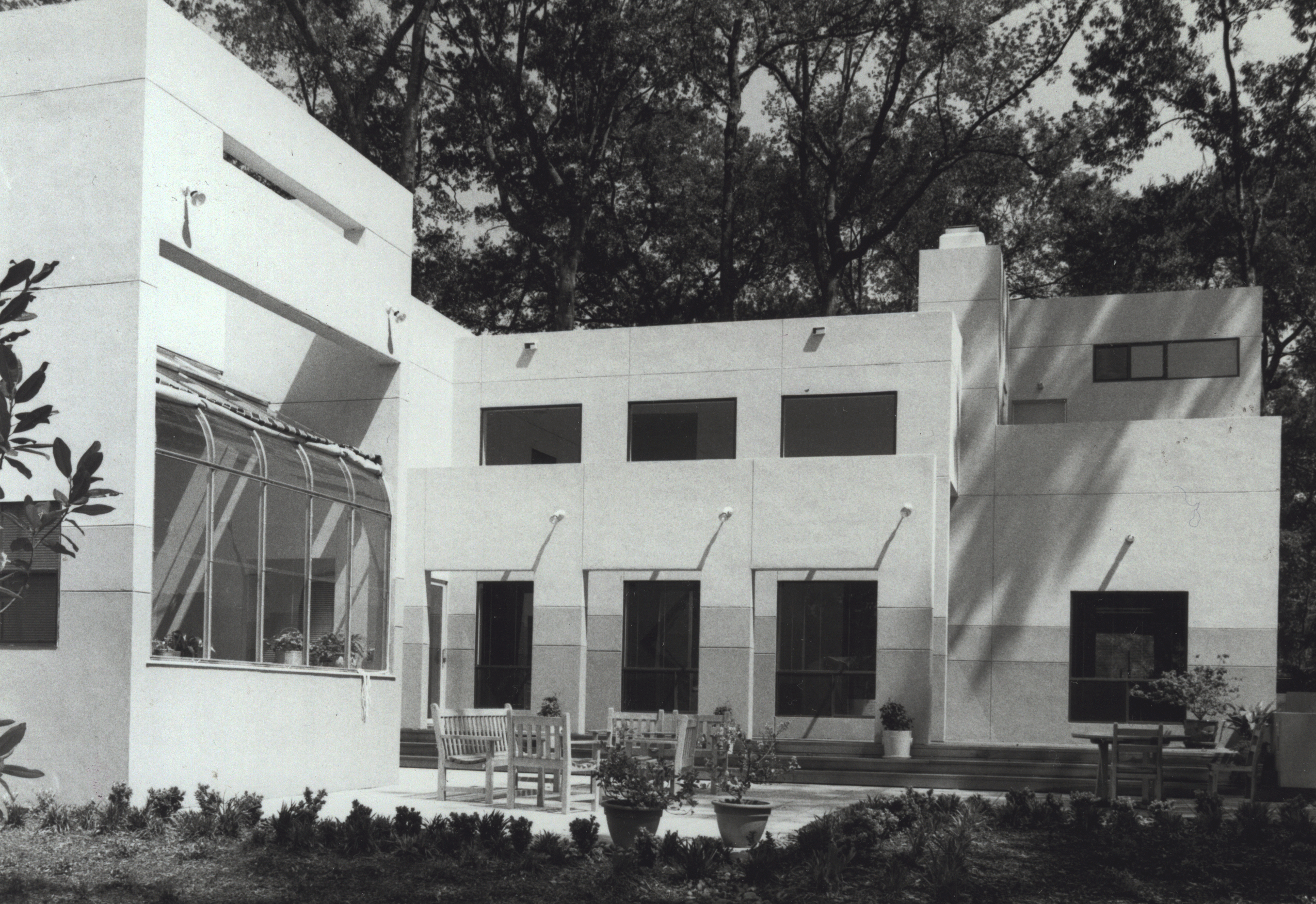

Exterior - "Private" Facade
Exterior - "Private" Facade

Dusk view, featuring the Sun Room (L) as a greenhouse insert, a glowing 'lantern'

press to zoom
The Garden Room
The Garden Room

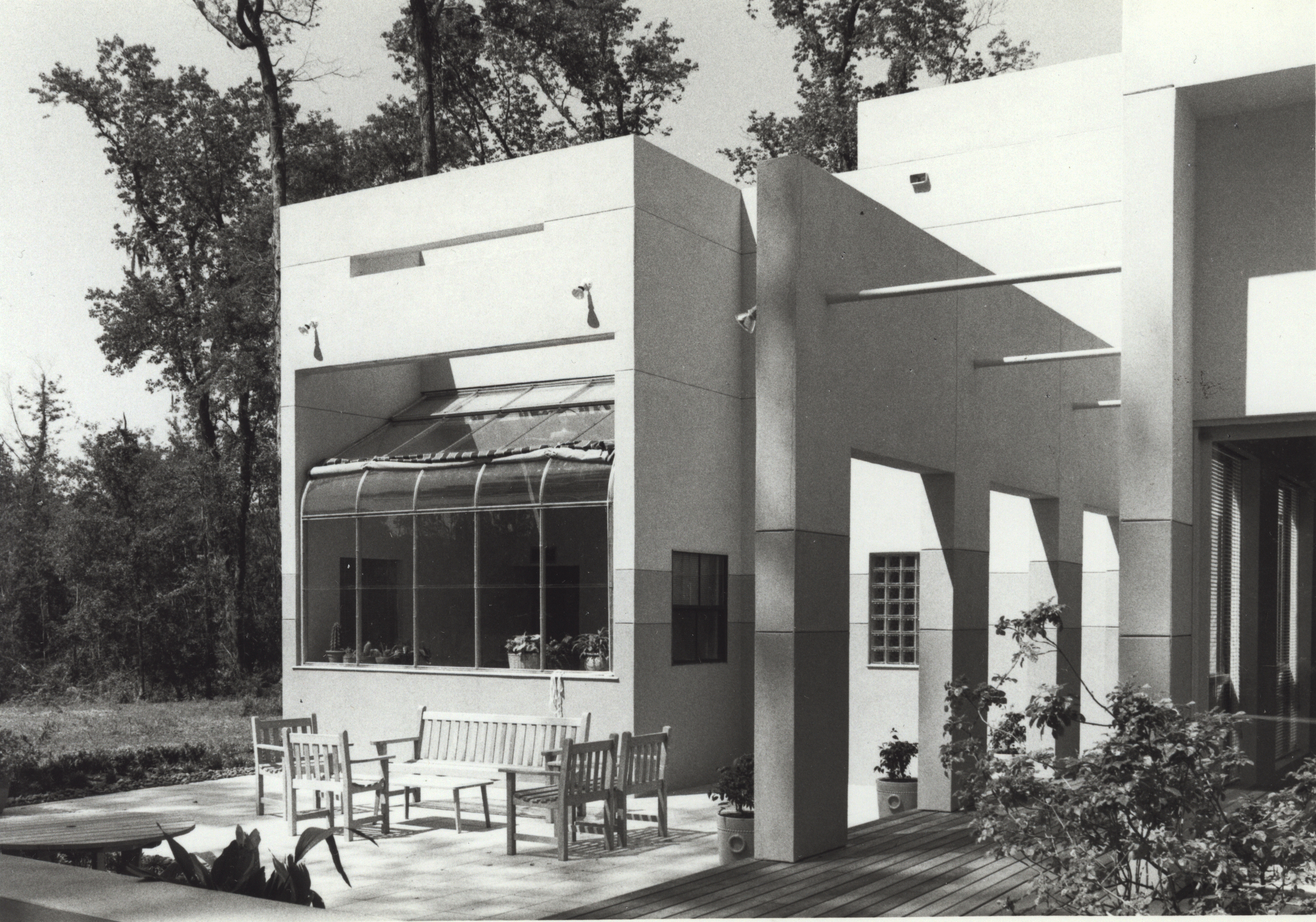

Closeup of the "box" containing the Greenhouse; completion of the Form with the cross-piece spandrel.

press to zoom

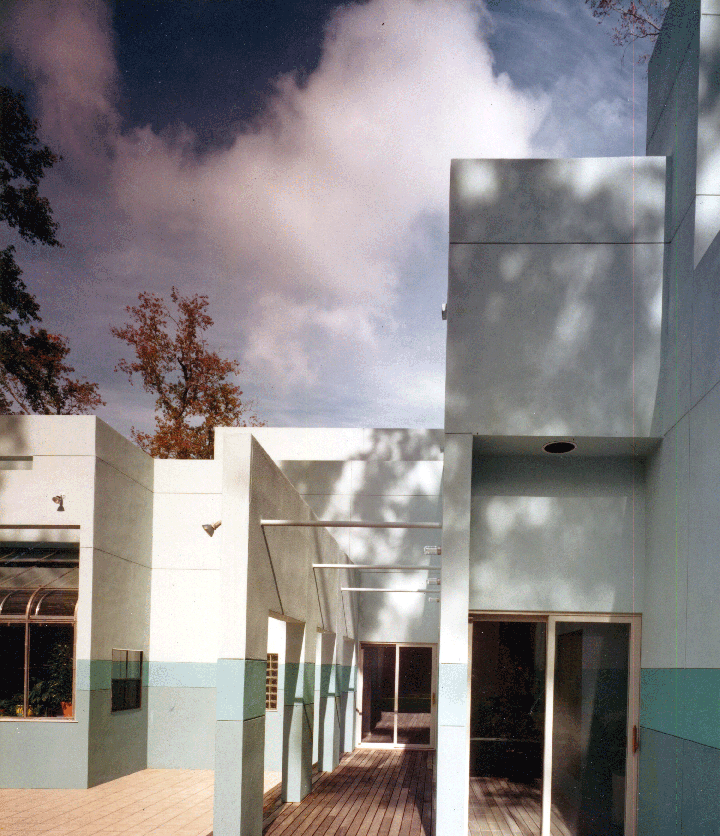

Dialogue of Masses
Dialogue of Masses

The opposing Forms complete definition of outdoor space.

press to zoom

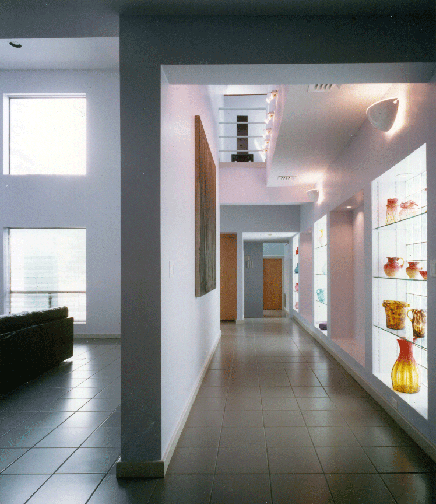

Interior-Gallery
Interior-Gallery

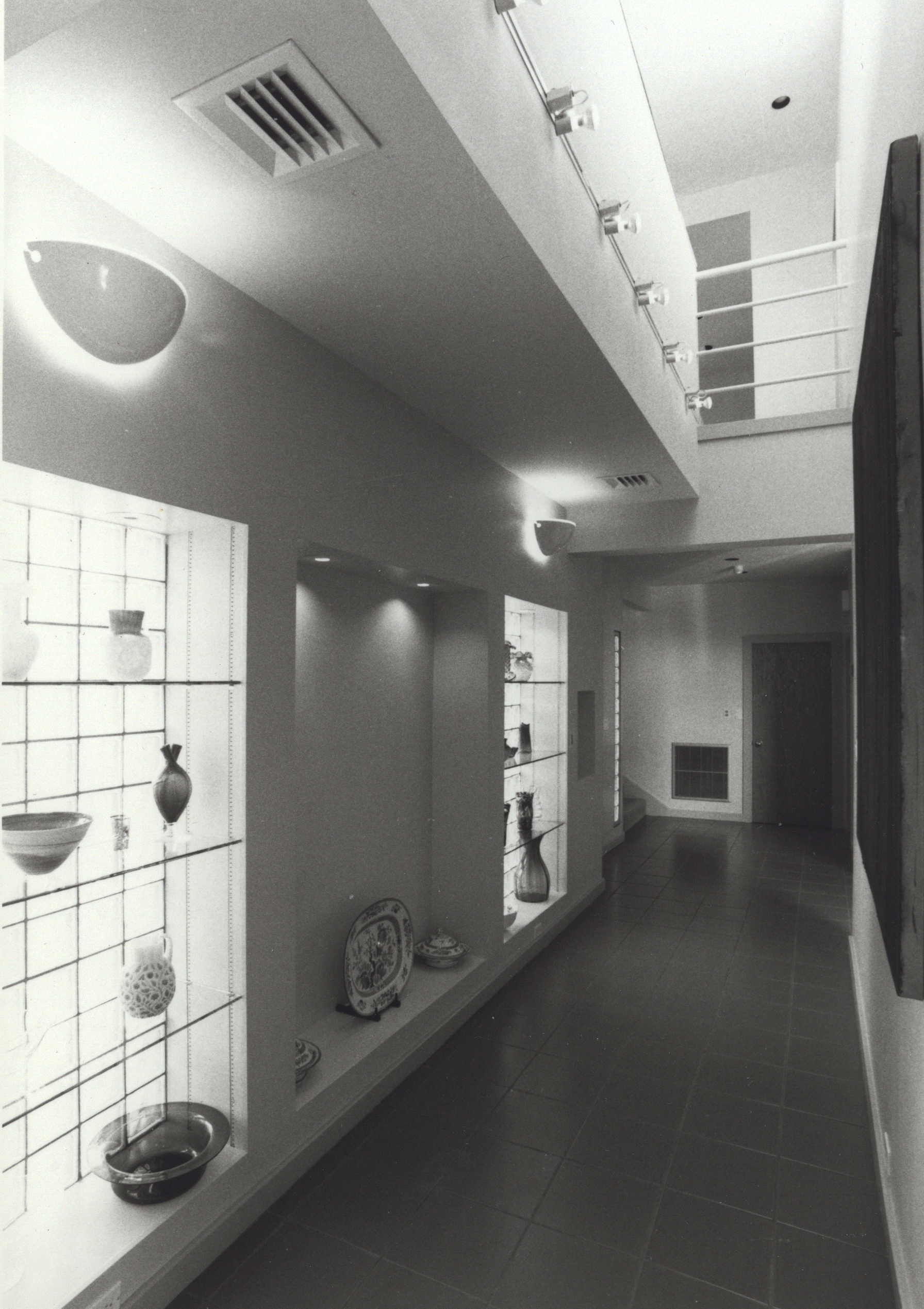

Living Room (L) is separated by the wall plane which is a double-height, its feature being the owner's collection of 19th Century American art glass.

press to zoom
Gallery 2
Gallery 2

View in opposing direction toward Entry.

press to zoom

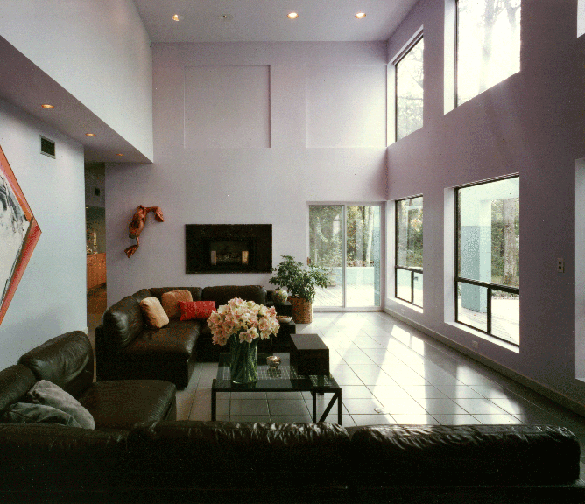

Interior - Living Room
Interior - Living Room

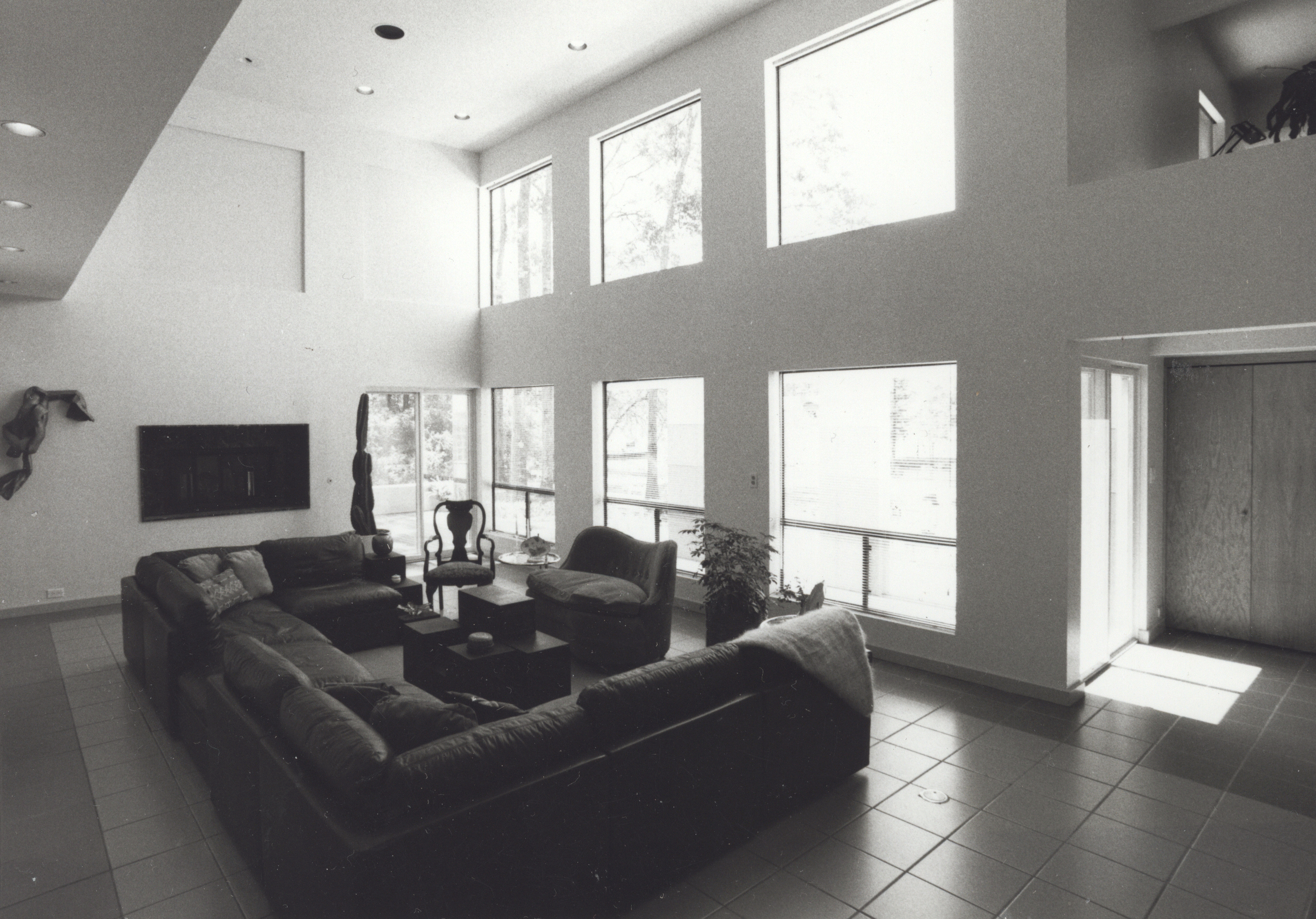

The double-height space illustrates the openness toward the water view. The aperture pattern is echoed in recessed panels and the fireplace. The thicker exterior wall stiffens the wall plane, as well as providing window shade 'slots' as needed. The modular furniture had been purchased before the design, and was organized to orient to view and accommodate art pieces.

press to zoom
Living Room 2
Living Room 2

A better sense of interior volume.

press to zoom
Interior - Sun Room
Interior - Sun Room

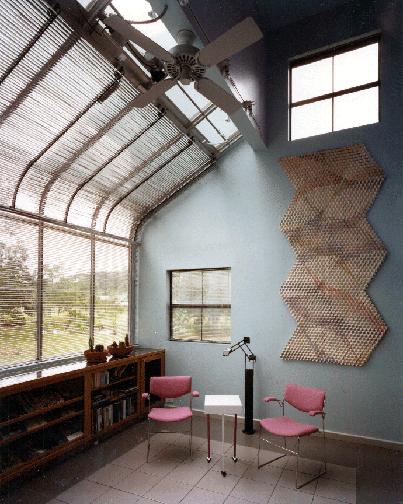

The Sun Room serves as an informal reading space, again oriented to the water view. The greenhouse insert was bracketed by walls, connected by an exterior 'beam', providing shading. In addition, it was an early use of electrically-operated blinds.

press to zoom
Interior---Kitchen
Interior---Kitchen

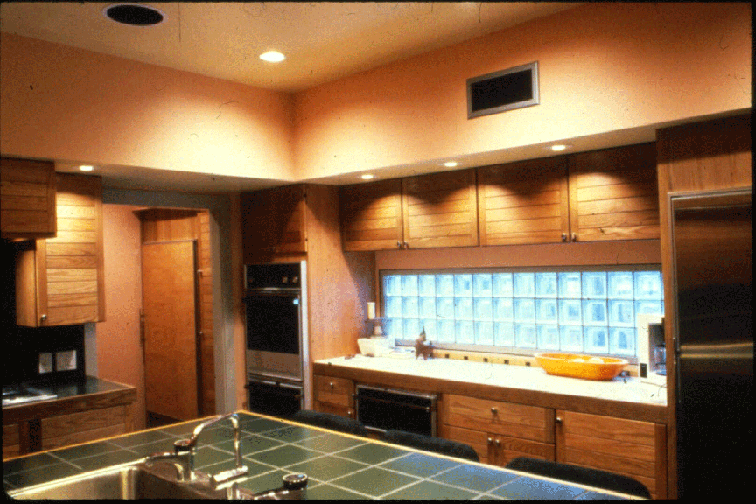

The glass block countertop 'window' faces the approach, and provides a 'privacy' element; it also is set within the green 'banding' of the exterior.

press to zoom

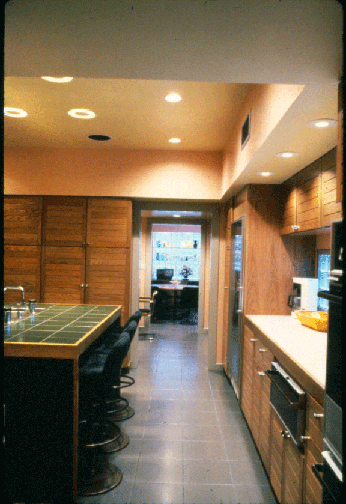

Interior-Kitchen 2
Interior-Kitchen 2

All spaces are spatially connected to others by virtue of 'centered' alignment. In this case, the Kitchen links on axis to a Breakfast Room.

press to zoom

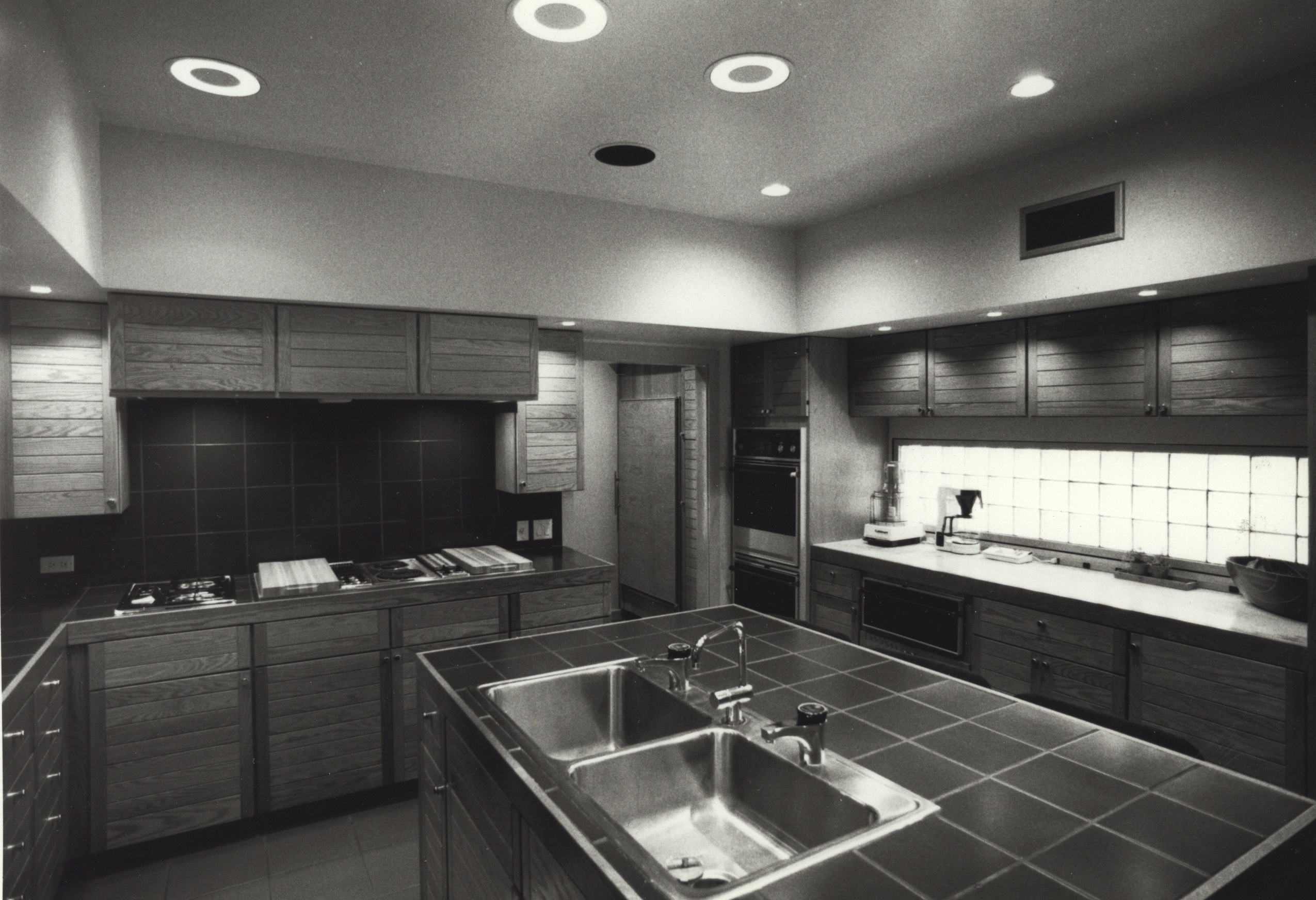

Interior Kitchen 3
Interior Kitchen 3

A center of activity for a determined Cook.
