A PERSONAL GARDEN - Order in the Landscape

Order by Geometry

''Making Place'' –

generating a 'system' to underlie and guide the fabrication of ordering: a simple Garden, tended and sustained by an infrastructure centralized at the Compost Bin, with a watering main line controlled with a programmed timer/spigot-hose bipp to clean garden tools, and maintain moisture within the Compost Bin.

A fiberglass 'vault' top to the cube-like Bin, can be lifted and raised from either the Front or Rear, on pivot rods that also support the top assembly. This permits supplying compost material (grass clippings, kitchen scraps, etc) from the Rear, and extracting reduced organic matter from an opening at the Front. Vent openings are provided on both sides and the Rear, determined by the material geometry of cinder block units, as well as vent slots on each side of the hinged vault top.

Solid cinder blocks are also used in the design of the spigot, to maintain the theme (as well the 'platform' paving pattern at both the Compost Bin and the entrance gate are also generated from the 8''x16''x4'' solid blocks), and a 'shifted' geometry is used to provide a ‘slot’ which can house the digital watering cycle timer. The geometry of the entire Garden evolves from the order that is based on the unit module of Compost Bin itself, centered on the axis. While the Bin is essentially a Cube, its geometry repeats as variations on all sides, embracing  "regulating lines". Raising the 'vault' top of the Bin results in a 'latent' Golden Section, completing the theme..

'CLICK' on images for Caption and to review in Sequence.

GARDEN BEGINNING
GARDEN BEGINNING

Undertaken to both provide satisfaction thru Sustainability, education for Self and Children [playset at rear], and healthy Provisions for Family.

press to zoom
DRAWINGS
DRAWINGS

Field Sketches for construction, given to Carpenter, laid out on graph paper, a pencil on a string to cast the curve.

press to zoom

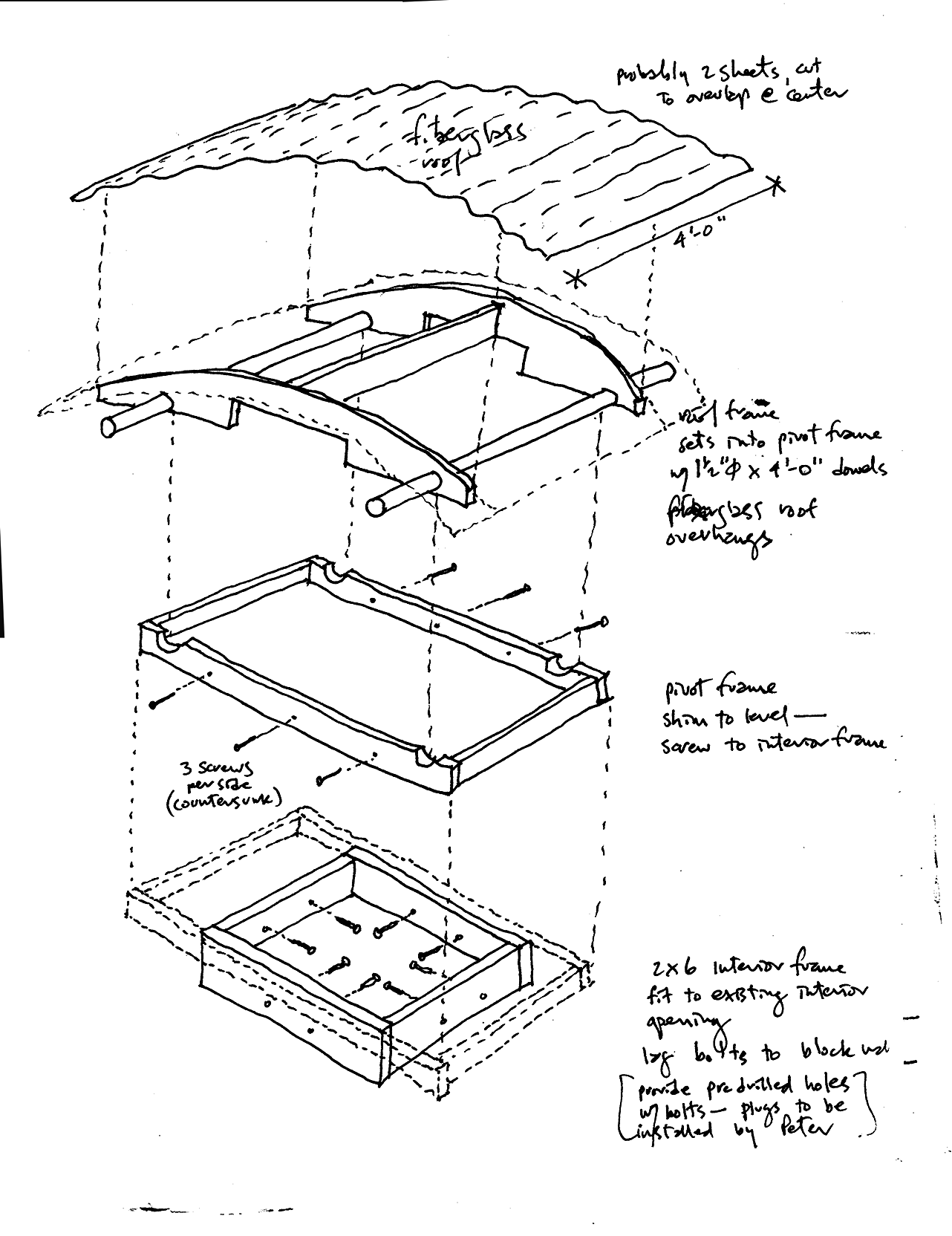

BLOW-AWAY SKETCH
BLOW-AWAY SKETCH

Axonometric showing assembly of components, complementing the "construction documents".

press to zoom
GARDEN BEGINNING-Part 2
GARDEN BEGINNING-Part 2

Opposite View, focused on the centered Compost Bin: 'stone' versus 'wood', the conceptual generator of Geometry. Education/Appreciation

press to zoom
GARDEN PLAN PROPORTIONS 2
GARDEN PLAN PROPORTIONS 2

The Compost Bin, appended to the enclosed Garden, exhibits geometric principles both as 'grid' and 'shifts', as well as the Theme of Squares.

press to zoom
COMPOST BIN ELEVATIONS
COMPOST BIN ELEVATIONS

"Front" facing inward, with a slot from which to scoop compost; "Rear" faces outward, with a hinged top to supply fresh organic materials; "Sides" are identical with air slots for ventilation. The hose bipp enclosure houses a water timer and provides a platform for washing and filling containers.

press to zoom
COMPOST BIN FRONT GOLDEN SECTION
COMPOST BIN FRONT GOLDEN SECTION

Geometry of Block modules, closed Form to the Garden interior, the only opening to remove Compost.

press to zoom
COMPOST BIN REAR  - GOLDEN SECTION
COMPOST BIN REAR - GOLDEN SECTION

Facing outwards, "slots" in the Block pattern to allow compost to 'breathe', 'rot, and contain internal heat.

press to zoom
COMPOST BIN FAUCET - GOLDEN SECTION
COMPOST BIN FAUCET - GOLDEN SECTION

Form of the Faucet "platform" is composed of the same modules, providing for hand-held watering cans, spaced ergonomically for clearance.

press to zoom
COMPOST BIN SIDE - GOLDEN SECTION
COMPOST BIN SIDE - GOLDEN SECTION

The Proof: Cube literally evolves as Golden Section when the arched 'roof' [translucent to admit sunlight, functional to limit overwatering] is supported on metal rods.

press to zoom
Garden view - far end
Garden view - far end

After more than 20 years, the Site and its elements have aged/'weathered' but remain a source of Spring - Fall outdoor Living.
